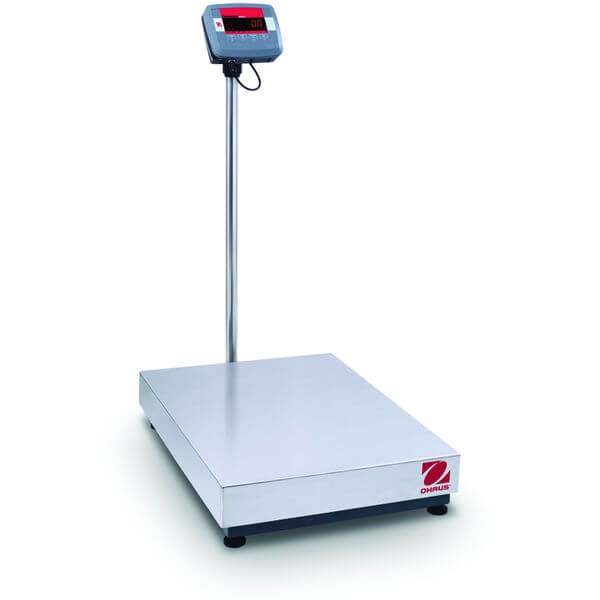

DEFENDER™ 2000 - D24P
Designed for Dependability and Durability at a Practical Price!
| D24PE30FR | D24PE60FR | D24PE150FL | D24PE300FX | D24PE600FV | |
| Maximum Capacity | 30 kg | 60 kg | 150 kg | 300 kg | 600 kg |
| Readability | 5 g | 10 g | 20 g | 50 g | 100 g |
| Platform Size | 350 mm x 300 mm | 350 mm x 300 mm | 500 mm x 400 mm | 600 mm x 500 mm | 800 mm x 600 mm |
| Item Number: | 30235922 | 30235927 | 30235937 | 30235947 | 30235957 |
OVERVIEW
The OHAUS Defender 2000 Series of bench scales offers OHAUS’ signature accuracy for commercial and industrial weighing applications at an unbeatable price. Depend on the OHAUS Defender 2000 Series when you need accuracy you can count on while maximizing your budget.
Applications
Weighing, Parts Counting, Accumulation
Display
Light-emitting diode display (LED)
Operation
AC Adapter (Included) or Rechargeable Battery (Included)
Communication
RS232 (Available as an Accessory)
Construction
ABS indicator, 430 grade stainless steel platform with painted steel tubular frame, IP65 aluminum load cell
Design Features
Indicator with ABS plastic housing, red LED display, tactile mechanical keys, optional RS232C with manual/continuous/interval printing, hardware configuration lockout switch, internal lead-acid rechargeable battery and AC adapter. Software included for parts counting mode with selectable sample sizes and weighing totalization (Accumulation) functions. Selectable span calibration points, averaging level, auto-zero tracking and battery saving auto-off. Stainless steel pan with painted carbon steel tubular frame, non-slip rubber leveling feet with locking nuts, externally visible level bubble, aluminum alloy IP65 load cell, down-stops for overload protection
SPECIFICATIONS
| D24PE30FR | D24PE60FR | D24PE150FL | D24PE300FX | D24PE600FV | |
| Maximum Capacity | 30 kg | 60 kg | 150 kg | 300 kg | 600 kg |
| Readability | 5 g | 10 g | 20 g | 50 g | 100 g |
| Platform Size | 350 mm x 300 mm | 500 mm x 400 mm | 600 mm x 500 mm | 800 mm x 600 mm | |
| Legal for Trade | No | ||||
| Power | Rechargeable Battery (Included); AC Adapter (Included) | ||||
| Battery Life | 80 Hours with Rechargeable Battery | ||||
| Communication | RS232 (Available as an Accessory) | ||||
| Dimensions | 462 mm x 740 mm x 300 mm (LxHxW) | 612 mm x 940 mm x 400 mm (LxHxW) | 712 mm x 940 mm x 500 mm (LxHxW) | 912 mm x 1,240 mm x 600 mm (LxHxW) | |
| Display | Red LED | ||||
| In-Use Cover | Available as an Accessory | ||||
| Net Weight | 11 kg | 11 kg | 15 kg | 26 kg | 40 kg |
| Outputs | Not Applicable | ||||
| Platform Construction | Stainless Steel | ||||
| Protection Rating | Not applicable | ||||
| Second Scale Input | Not applicable | ||||
| Tare Range | To capacity by subtraction | ||||
| Units of Measurement | Kilogram; Gram; Pound | ||||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C - 40°C, 85% RH, non-condensing) | ||||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|

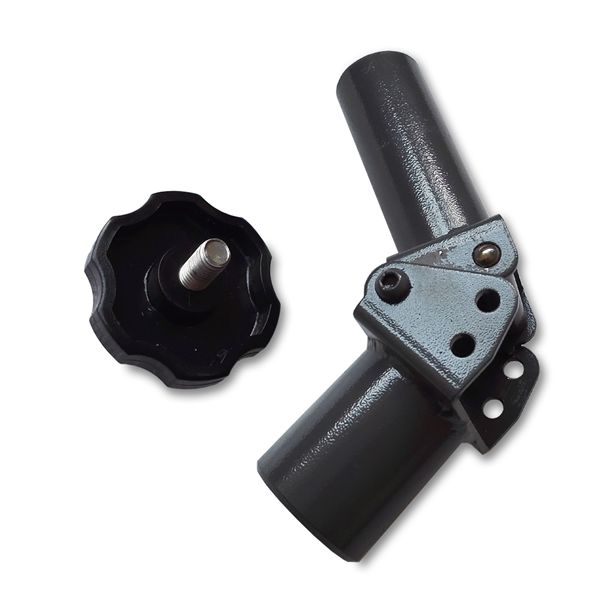

Item Number 30101016 Description Folding Kit, D2K |
|
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|
|

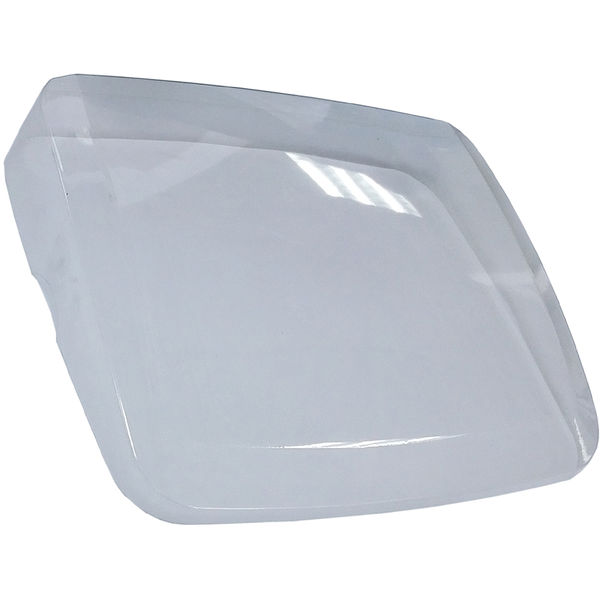

Item Number 30101017 Description In-Use-Cover, T24P T31P |
|
|

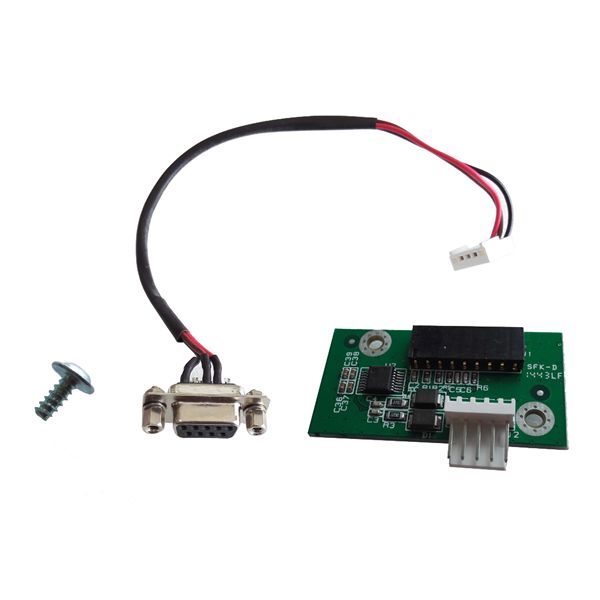

Item Number 30101019 Description RS232 Kit, D2K |
