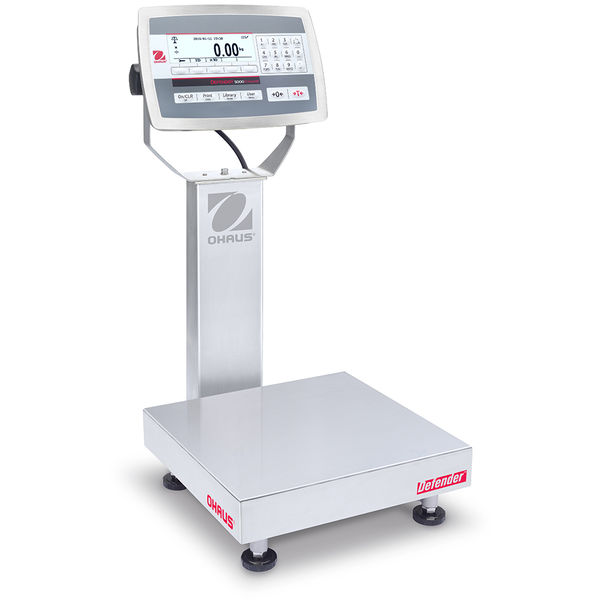

DEFENDER™ 5000 WASHDOWN - D52
Multifunctional Stainless Steel Washdown Bench Scale for Standard Industrial Applications
| Maximum Capacity | 30 kg/60 kg |
| Readability | 2 g;5 g |
| Readability (Certified) | 10 g;20 g |
| Item Number: | 30424111 |
OVERVIEW
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304-grade stainless steel platform and frame, stainless steel IP68 indicator, IP67 stainless steel load cell (single range) / aluminum load cell (dual range), non-slip adjustable rubber feet
Design Features
Resolution up to dual range 3,000e, 150% overload capacity, checkweighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare
SPECIFICATIONS
| Maximum Capacity | 30 kg/60 kg |
| Readability | 2 g; 5 g |
| Readability (Certified) | 10 g; 20 g |
| Platform Size | 400 mm x 400 mm |
| Legal for Trade | EC Type Approvable; OIML |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Battery Life | 20 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory) |
| Dimensions | 570 mm x 934 mm x 400 mm (LxHxW) |
| Display | Dot matrix LCD with white LED backlight |
| Net Weight | 20 kg |
| Outputs | 4 - 20mA; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | IP67 |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Tonne; Custom; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
ACCESSORIES
|
Item Number 30424404 Description 2nd RS232/RS485/USB Kit TD52 DT61XW |
|
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 30424021 Description Alarm Beacon Kit 3 Colors 243mm OHAUS |
|
 |
Item Number 30424403 Description Analog Output Kit, TD52 DT61XW |
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|
|
Item Number 30424409 Description Cable Extension 9m D52 |
|
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|
|
Item Number 30097591 Description Discrete I/O Kit, R71 TD52 DT61XW |
|
|
Item Number 30429666 Description Ethernet kit Defender Series |
|
|
Item Number 30379716 Description Gland M16 D52 |
|
|
Item Number 30424025 Description Holder Kit Printer SST |
|
|
Item Number 30469949 Description In-Use-Cover, Set(10), TD52XW |
|
|
Item Number 30424023 Description In-Use-Cover, TD52XW |
|
|
Item Number 30303533 Description Micro SD Card |
|
|
Item Number 30424405 Description Rechargeable battery Li-ion TD52 |
|
|
Item Number 30424406 Description USB Host Interface for Dongle TD52 |
|
|
Item Number 30424026 Description Wall Mount Kit, SST, TD52XW |
|
|
Item Number 30303533 Description Micro SD Card |
|
|
Item Number 30412537 Description Wireless Dongle MTICWD-200 |
