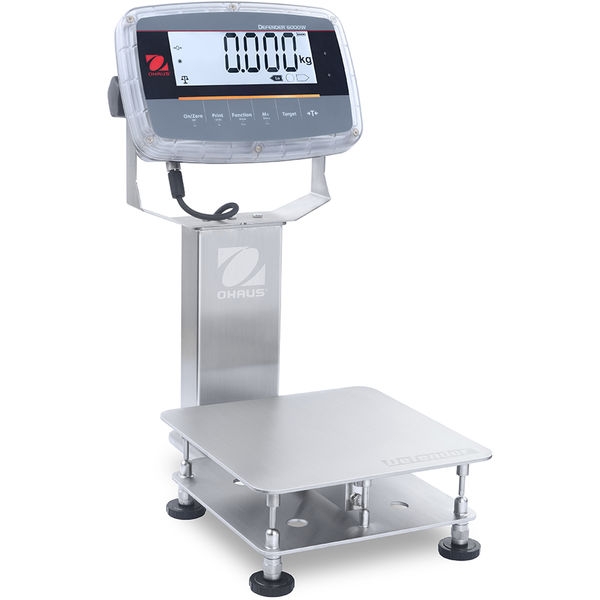

DEFENDER™ 6000 WASHDOWN - I-D61PW
Advanced IP68/IP69k Washdown Bench Scale
| Maximum Capacity | 60 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 10 g |
| Item Number: | 30572882 |
OVERVIEW
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Applications
Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment LCD display with white backlight, 45 mm high digits
Operation
6 D (LR20) Batteries (Included)
Communication
Easy access IR communication kit (available as an accessory); GLP/GMP data output with real-time clock
Construction
316 stainless steel platform and frame, hermetically-sealed stainless steel load cell, IP68/IP69K food grade polycarbonate housing indicator and 316 stainless steel mounting bracket
Design Features
150% overload capacity protection, 3-color check light bar, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, low battery indicator, auto shut-off, auto tare, adjustable rubber feet
SPECIFICATIONS
| Maximum Capacity | 60 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 10 g |
| Platform Size | 11.8 in x 11.8 in (300 mm x 300 mm) |
| Legal for Trade | EC Type Approvable; OIML |
| Power | 6 D (LR20) batteries (included) |
| Battery Life | 1600 Hours with Disposable Batteries |
| Communication | Infrared communication kit (available as an accessory) |
| Dimensions | 16.8 in x 19.8 in x 11.8 in (427 mm x 504 mm x 300 mm) (LxHxW) |
| Display | 7-Segment LCD with white backlight, height 45mm + 3 Color Checkweigh LED |
| Net Weight | 24.7 lb (11.2 kg) |
| Outputs | Not Applicable |
| Platform Construction | Stainless Steel |
| Protection Rating | IP69k; IP68 |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Metric Tons; Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
ACCESSORIES
|
Item Number 30424409 Description Cable Extension 9m D52 |
|
|
Item Number 30379716 Description Gland M16 D52 |
|
|
Item Number 30572910 Description IR Communication Kit |
|
|
Item Number 30616409 Description Wheel Kit SST Defender Series |
