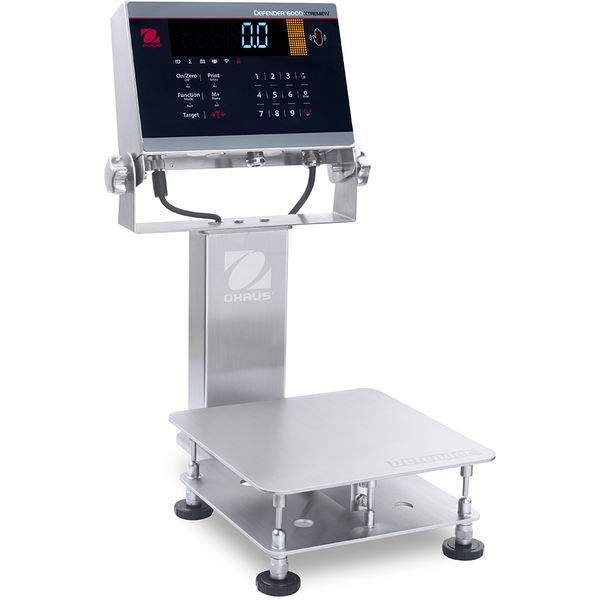

DEFENDER™ 6000 WASHDOWN - I-D61XW
Advanced IP68/IP69k Washdown Bench Scale
| Maximum Capacity | 60 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 10 g |
| Item Number: | 30572888 |
OVERVIEW
The Defender 6000 Series Extreme Washdown Bench Scale is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Applications
Weighing, Counting with APW optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment white LED, 20 mm high digits
Operation
100-240 VAC / 50/60 Hz universal power supply, hardwired
Communication
Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
316 stainless steel platform and frame, hermetically-sealed, stainless steel load cell, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel
Design Features
150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet
SPECIFICATIONS
| Maximum Capacity | 60 lb (30 kg) |
| Readability | 0.005 lb (2 g) |
| Readability (Certified) | 10 g |
| Platform Size | 300 mm x 300 mm |
| Legal for Trade | EC Type Approvable; OIML |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Battery Life | Not Applicable |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232; USB Host; WiFi/Bluetooth (available as an accessory) |
| Dimensions | 427 mm x 518 mm x 300 mm (LxHxW) |
| Display | 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED |
| Net Weight | 11.7 kg |
| Outputs | 4-20 mA; 0–10V; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Protection Rating | IP69k; IP68 |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing) |
ACCESSORIES
|
Item Number 30424404 Description 2nd RS232/RS485/USB Kit TD52 DT61XW |
|
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 30424021 Description Alarm Beacon Kit 3 Colors 243mm OHAUS |
|
 |
Item Number 30424403 Description Analog Output Kit, TD52 DT61XW |
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|
|
Item Number 30424409 Description Cable Extension 9m D52 |
|
|
Item Number 80500552 Description Cable RS232 XW Indicators |
|
|
Item Number 30097591 Description Discrete I/O Kit, R71 TD52 DT61XW |
|
|
Item Number 30429666 Description Ethernet kit Defender Series |
|
|
Item Number 30379716 Description Gland M16 D52 |
|
|
Item Number 80500503 Description PCBA Kit, Alibi Memory, R71 T71 |
|
|
Item Number 30572907 Description Sealing Kit External Power Bank |
|
|
Item Number 30616409 Description Wheel Kit SST Defender Series |
|
|
Item Number 30412537 Description Wireless Dongle MTICWD-200 |
