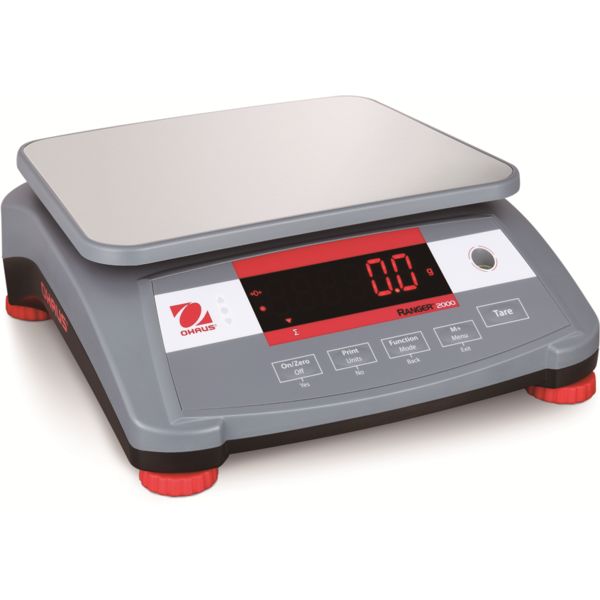

RANGER™ 2000
Effective Compact Bench Scales for Industrial Weighing Applications
| R21PE1502 | R21PE3 | R21PE6 | R21PE15 | R21PE30 | |
| Maximum Capacity | 3 lb (1.5 kg) | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0001 lb (0.05 g) | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) |
| Item Number: | 30031904 | 30031905 | 30031906 | 30031907 | 30031908 |
OVERVIEW
The Ranger 2000 has all of the capabilities to produce precise results rapidly for a variety of applications. With seven application modes, Ranger 2000 is the ideal scale to meet many industrial weighing needs. Portable and equipped with a rechargeable battery, this scale is beneficial in every corner of the factory and is equipped with functions and features that elevate the Ranger 2000 to a class of its own.
Applications
Weighing, Parts Counting, Checkweighing, Percent Weighing, Dynamic Weighing, Display Hold, Accumulation
Display
Light emitting diode (LED) display
Operation
AC power (included) or rechargeable battery (included)
Communication
Easy Access RS232 communication port (included)
Construction
ABS housing, ABS platform with stainless steel inset, transportation handle, menu lock switch, up front level indicator
Design Features
110 hours of battery life, 3 LED checkweighing lights with selectable operation and audible signal settings, selectable environmental and auto-print settings, auto shut-off, auto tare
SPECIFICATIONS
| R21PE1502 | R21PE3 | R21PE6 | R21PE15 | R21PE30 | |
| Maximum Capacity | 3 lb (1.5 kg) | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0001 lb (0.05 g) | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | ||||
| Protection Rating | Not Applicable | ||||
| Dimensions | 12.2 in x 4.6 in x 12.9 in (311 mm x 117 mm x 327 mm) (LxHxW) | ||||
| Platform Construction | ABS with Stainless Steel Inset | ||||
| Net Weight | 8.6 lb (3.9 kg) | ||||
| Legal for Trade | Not Applicable | ||||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | ||||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|
Item Number 30037450 Description Hook R21 RC21 RC31 RC41 V71 |
|
|
Item Number 30304102 Description Interface Kit, RS232-Ethernet |
|
|
Item Number 30304101 Description Interface Kit, RS232-USB |
|
|
Item Number 30037451 Description In-Use-Cover, R21 RC21 R31 RC31 |
|
|
Item Number 30037452 Description Pan SST R21 RC21 R31 RC31 R41 RC41 V71 |
