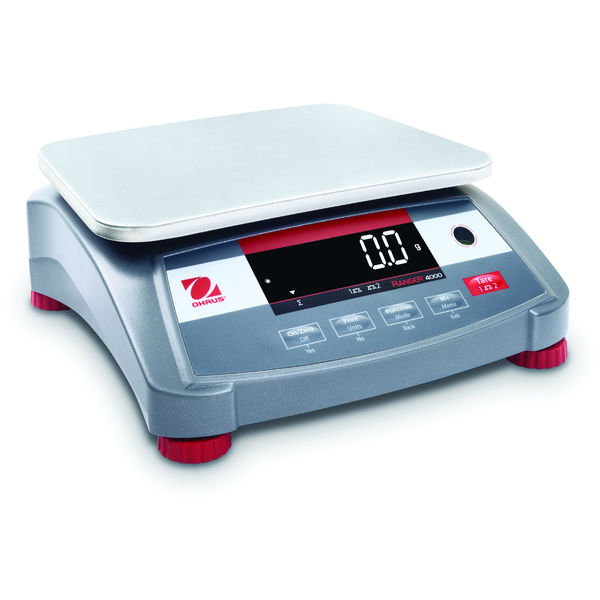

RANGER™ 4000
Durable Compact Scales for the Toughest Industrial Weighing Environments
| R41ME3 | R41ME3 | R41ME3 | R41ME3 | |
| Maximum Capacity | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) |
| Item Number: | 30231114 | 30231115 | 30231116 | 30231117 |
OVERVIEW
The multipurpose Ranger 4000 is the right tool for industrial weighing applications in which value is important but quality, durability, and functionality cannot be compromised. Portable with die-cast metal housing and a rechargeable battery, this scale is equipped with seven application modes that can provide results for many industrial weighing and measurement needs.
Applications
Weighing, Parts Counting, Checkweighing, Percent Weighing, Animal/Dynamic Weighing, Display Hold, Accumulation
Display
Light-emitting diode display (LED), 3 color checkweighing LEDs
Operation
AC power (included) or rechargeable battery (included)
Communication
Easy access communication port including standard RS232 (included) and second RS232, USB or Ethernet (accessories sold separately)
Construction
Rugged Cast Aluminum Housing, Stainless Steel Platform
Design Features
Cast Aluminum Housing, stainless steel platform, integral weigh-below hook, sealed front panel, menu lock switch, up front level indicator, adjustable leveling feet, selectable environmental and auto-print settings, stability indicator, overload and underload indicators, low battery indicator, auto shut-off, auto tare
SPECIFICATIONS
| R41ME3 | R41ME3 | R41ME3 | R41ME3 | |
| Maximum Capacity | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 70 lb (35 kg) |
| Readability | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | |||
| Legal for Trade | NTEP Certified; Measurement Canada Approved; OIML | |||
| Power | AC Power (Included); Rechargeable Battery (Included) | |||
| Battery Life | 100 Hours with Rechargeable Battery | |||
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) | |||
| Dimensions | 12.9 in x 4.8 in x 12.4 in (327 mm x 122 mm x 315 mm) (LxHxW) | |||
| Display | LED Display | |||
| In-Use Cover | Included | |||
| Linearity ± | 0.2 g | 0.4 g | 1 g | 2 g |
| Net Weight | 13 lb (5.9 kg) | 13 lb (5.9 kg) | 13 lb (5.9 kg) | 13 lb (5.9 kg) |
| Platform Construction | Stainless Steel | |||
| Protection Rating | Not applicable | |||
| Readability (Certified) | 0.002 lb (1 g) | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Tare Range | To capacity by subtraction | |||
| Transportation Case | Not applicable | |||
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce | |||
| Working Environment | 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing) | |||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|
Item Number 30472064 Description Auxiliary display AD7-RS |
|
|
Item Number 30037447 Description Ethernet Kit R31 RC31 R41 RC41 R71 V71 |
|
|
Item Number 30037446 Description PCBA Kit 2nd Platform RC31 R41 RC41 |
|
|
Item Number 30037448 Description RS232 Kit R31 RC31 R41 RC41 R71 V71 |
|
|
Item Number 30037449 Description USB Kit R31 RC31 R41 RC41 V71 |
