VALOR™ 7000
Improve Productivity & Handle Demanding Applications With This Adaptable Multi-Functional Scale
| V71P1502T | V71P3T | V71P6T | V71P15T | V71P30T | |
| Maximum Capacity | 3 lb (1.5 kg) | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0001 lb (0.05 g) | 0.0002 lb (0.1 g) | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) | 8.9 in x 11.8 in (225 mm x 300 mm) |
| Item Number: | 30085430 | 30085431 | 30085432 | 30085433 | 30085434 |
OVERVIEW

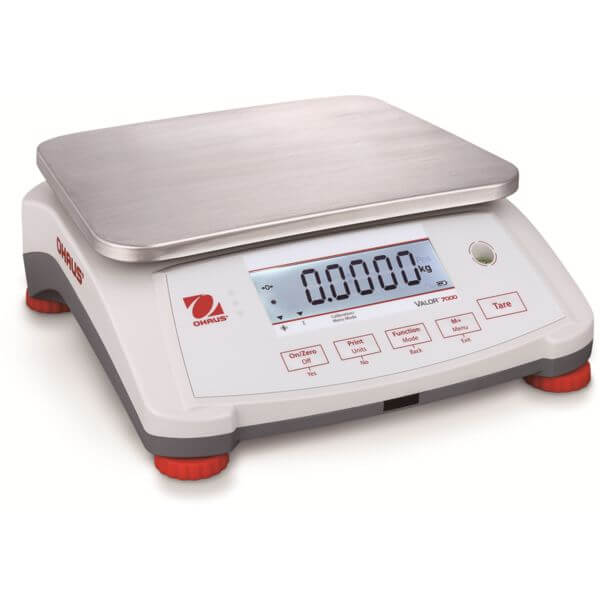

The OHAUS Valor 7000 compact food scale is the newest scale in OHAUS’s line of reliable and durable products that will increase your food weighing and proportioning productivity. Dual displays and touchless sensors, user-friendly menu and setup, along with the speed and accuracy of the results provide for a seamless and hassle-free user experience that is second to none.
Applications
Weighing, Percent Weighing, Checkweighing, Accumulation
Display
Dual backlit liquid crystal displays (LCD)
Operation
AC power (included) or rechargeable battery (included)
Communication
RS232 (included); USB, Ethernet, or second RS232 (accessories sold separately)
Construction
ABS housing, stainless steel platform, touchless sensor, transportation handle, menu lock switch, up front level indicator
Design Features
210 hours of battery life, 3 LED checkweighing lights with selectable operation and audible signal settings, selectable environmental and auto-print settings, auto shut-off, auto tare
SPECIFICATIONS
| V71P1502T | V71P3T | V71P6T | V71P15T | V71P30T | |
| Maximum Capacity | 3 lb (1.5 kg) | 6 lb (3 kg) | 15 lb (6 kg) | 30 lb (15 kg) | 60 lb (30 kg) |
| Readability | 0.0001 lb (0.05 g) | 0.0002 lb (0.1 g | 0.0005 lb (0.2 g) | 0.001 lb (0.5 g) | 0.002 lb (1 g) |
| Platform Size | 8.9 in x 11.8 in (225 mm x 300 mm) | ||||
| Legal for Trade | NTEP Certified; EC Type Approvable; Measurement Canada Approved | ||||
| Power | Rechargeable Battery (Included); AC Adapter (Included) | ||||
| Battery Life | 210 Hours with Rechargeable Battery | ||||
| Communication | 2nd RS232 (Available as an Accessory); Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) | ||||
| Dimensions | 12.2 in x 4.6 in x 12.9 in (311 mm x 117 mm x 327 mm) (LxHxW) | ||||
| Display | Dual LCD with white LED backlight + 3 LED | ||||
| In-Use Cover | Included | ||||
| Linearity ± | 0.1 g | 0.2 g | 0.5 g | 1 g | 2 g |
| Net Weight | 9.2 lb (4.2 kg) | 9.2 lb (4.2 kg) | 9.2 lb (4.2 kg) | 9.2 lb (4.2 kg) | 9.2 lb (4.2 kg) |
| Platform Construction | Stainless Steel | ||||
| Protection Rating | IP43 | ||||
| Readability (Certified) | 0.001 lb (0.5 g) | 0.002 lb (1 g) | 0.005 lb (2 g) | 0.01 lb (5 g) | 0.02 lb (10 g) |
| Tare Range | To capacity by subtraction | ||||
| Transportation Case | Not applicable | ||||
| Units of Measurement | Gram; Kilogram; Pound; Ounce; Pound:Ounce | ||||
| Working Environment | 14°F – 104°F, 90%RH, non-condensing (-10°C – 40°C, 90%RH, non-condensing) | ||||
ACCESSORIES
|
Item Number 30045641 Description Printer, Impact, SF40A |
|
|
Item Number 80500525 Description Cable RS232 IBM 9P Male-to-Female |
|
|
Item Number 30037447 Description Ethernet Kit R31 RC31 R41 RC41 R71 V71 |
|
|
Item Number 30037450 Description Hook R21 RC21 RC31 RC41 V71 |
|
|
Item Number 30037469 Description In-Use-Cover, Set(10), V71 |
|
|

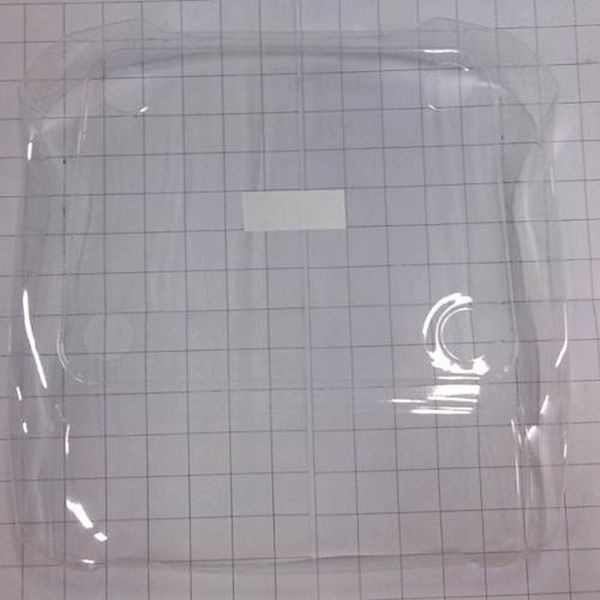

Item Number 30037445 Description In-Use-Cover, V71 |
|
|
Item Number 30037448 Description RS232 Kit R31 RC31 R41 RC41 R71 V71 |
|
|
Item Number 30037449 Description USB Kit R31 RC31 R41 RC41 V71 |
